AMEK HENDRIX Recording Console


Message Board - AMEK HENDRIX Recording Console


56-Channel, AMEK HENDRIX, at Coconut Recording Studios.


HENDRIX, by AMEK, is a further extension of the philosophy, art and science of console design and construction developed and incorporated into the extremely-successful MOZART. Our aim is to present a console which extends this family, and offers the world's engineers and production facilities a further choice in a console technology which has been extensively researched and proven worldwide.

A further and very important point is that HENDRIX and MOZART use exactly the same automation system, the only exception being that HENDRIX has eight automated switches per input against MOZART's fifteen; mix information is therefore fully compatible between both consoles.

HENDRIX is available in two standard sizes: a 40-input chassis which incorporates a maximum of 40 HX10 Input/Output modules and 4 HX11 Stereo Line Input/FX Return modules, as well as the Monitor/Output section and a 56 input chassis which contains a maximum of 56 HX10 modules.

Each HX10 module has a dual-path construction allowing it to handle two line level signals during mix down, both with equalization. The HX11 modules provide 4 Stereo FX Return and 4 Equalized Stereo Line Inputs. As a result, the console is capable of 80 mono and 8 stereo signals simultaneously, with equalization on most of them.

Each Input/Output module is fitted with the classic and much-loved AMEK 4-band parametric equalizer as fitted to the M2500, G2520 and APC1000 consoles. This equalizer includes two overlapping Pass Filters. Twelve Auxiliary Send busses are provided and if further auxiliary outputs are required then the 24 multitrack busses may be easily accessed. The microphone amplifier is the latest generation SSM 2016 circuit.

The console has balanced bussing throughout with balanced inputs and outputs. A meter is fitted at each Input/Output module position. The Stereo Line Inputs are complete with all the controls necessary for the comprehensive handling of stereo signals including a Balance/Pan control, a Stereo Equalizer and access to Auxiliary Sends. Additionally each Stereo Line Input can act as a Stereo Subgroup sourced from the multitrack busses for easy "bounce-down" and audio subgrouping on mixdown.

All HENDRIX consoles are fully automated using the proven AMEK/Steinberg SUPERTRUE automation system. The built-in Keyboard, Trackerball, Hard Disk, Computer, Screen and Timecode Generator Reader are all supplied as standard and the system as fitted to the HENDRIX automates 8 switches on each channel in addition to providing comprehensive automated control of Fader Levels and Mutes. Additionally, up to 16 VCA fader groups may be created.

VIRTUAL DYNAMICS, the latest AMEK digital dynamics software and hardware package and SUPERLOC, the AMEK machine control package are optional either factory-fitted or as a field retrofit.

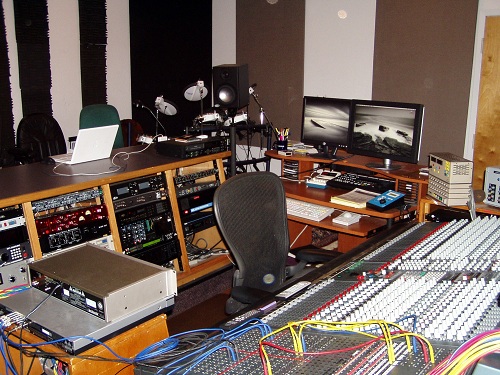

AMEK HENDRIX, at Spectrum Recording Studios, Studio A - Fort Lauderdale, FL


AMEK HENDRIX, at Spectrum Recording Studios, Studio A - Fort Lauderdale, FL

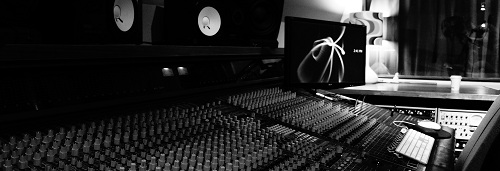

AMEK HENDRIX, at Salt Recording Studios

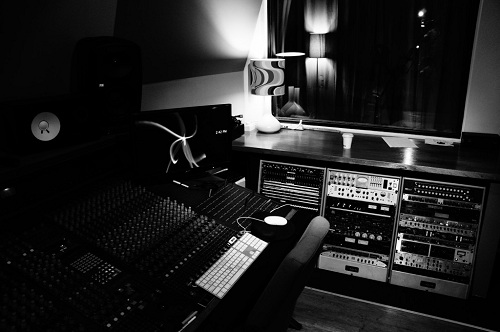

AMEK HENDRIX, at Salt Recording Studios



AMEK HENDRIX Recording Console!

Do you have content, to add, about the AMEK HENDRIX Recording Console or associated topics? Please feel free to Share it, here!

[ ? ]

Upload 1-4 Pictures or Graphics (optional)[ ? ]



Click here to upload more images (optional)

Author Information (optional)

To receive credit as the author, enter your information below.

(first or full name)

(e.g., City, State, Country)

Submit Your Contribution

  •  submission guidelines.


(You can preview and edit on the next page)

What other Visitors have said about the AMEK HENDRIX Recording Console

Click below to see contributions from other visitors to this page...

Peter Rackham Not rated yet
Amek Hendrix 40 channel at The Sound Suite. Camden, London. Peter Rackham

Estudios El Omburecords, Montevideo ,Uruguay Not rated yet
This console was acquired in 2007 in Buenos Aires (Argentina) belonged to a study that was dismantled, today is installed in the studio A of El Omburecods, …
