The Dynatrack Machines

by Dale Manquen
(MANCO)

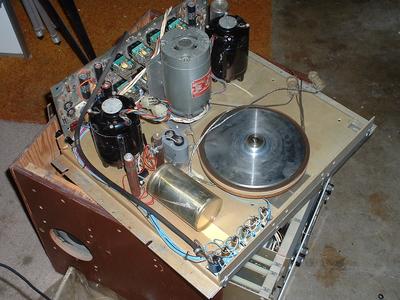

Underside of my 2-track transport that uses the original top plate and an M23 logic card

Underside of my 2-track transport that uses the original top plate and an M23 logic card

Underside of my 2-track transport that uses the original top plate and an M23 logic card

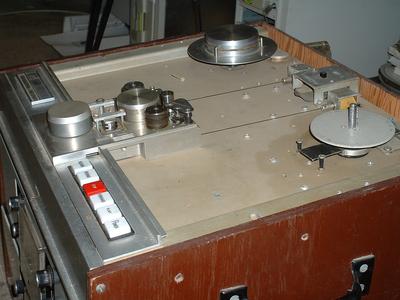

Topside of deck showing simplicity of the design

These Dynatrack-only machines used two tape tracks to record each audio channel. One track of the pair was a normal NAB-standards track, but the other track had high frequency preemphasis to overcome tape hiss. The "intelligent" playback system selected the correct track to optimize noise and distortion, taking advantage of the fact that the tape hiss was masked by the audio program at high signal levels. The trasitions between tracks was totally undetectable.

The transport provided greatly reduced flutter, especially in the scrape flutter range of 2K-5KHz.
(The system was so good that the EMI staff in England would not believe that test records cut with the system and pressed at Capitol had every gone through a tape recorder!)

After a few prototypes were constructed, 3M ran a pilot run of 6 machines. These machines were manufactured in St. Paul, which is where the Audio Lab with Jack Mullin, Ken Clunis, Don Kahn and Ray Smith was located.
The machines were delivered in early 1965:

#1 Transport 46-524 with electronics 46-207, 208, 209
A 3/4" 3-channel 6-track delivered to Capitol Records shipped 11/25/64

#2 Transport 46-525 with electronics 46-210, 211
A 1/2" 2-channel 4-track delivered to Capitol Records
Shipped 12/9/64

#3 Transpor 46-527 (50 Hz motor) with electronics 46-213, 214
1/2" 2-channel 4-track delivered to Radio Sweden in Stockholm
Shipped 2/16/65

#4 Transport 46-526 with electronics 46-217, 218
1/2" 2-channel 4-track delivered to Chicago to Leo Hulseman of the Solo Cup Company
Shipped 4/6/65

#5 Transport 46-528 with electronics 46-215, 216
A 1/2" 2-channel 4-track delivered in Los Angeles to Leo Hulseman of the Solo Cup Company
Shipped 3/12/65

#6 Transport 46-529 with electronics 46-212, 219, 220
A 3/4" 3-channel 6-track delivered in Los Angeles to Leo Hulseman of the Solo Cup Company 4/23/65 after the LA AES Convention.

In addition, there were a few prototypes. One was donated to the Music Department at New Mexico State University. The Audio Lab test unit was given to me by Jack Mullin. There was also a Demo Unit in portable cases - location unknown.

I believe the NARAS Museum has one of the Capitol Records machines in their collection.

These machines had no provisions for an erase head or SelSync. They were strictly intended for master recording. The M23 grew out of this project, but the M23 was primarily an NAB one-track-per-channel with SelSync and erase, but convertable to Dynatrack.

The Stockholm machine probably saw the longest use, recording the Stockholm Symphony.

As an interesting side note, Leo Hulseman's studio technician was John Stephens, who later modified 3M decks with his own electronics and eventually designed his own capstanless transport.

Aside from needing two tracks per channel, the system was well beyond any other tape recording system at the time. Eventually, the Dolby system overtook Dynatrack because it didn't require 2 tracks per channel. The M23 8-track configured for 8 NAB channels became a big player in the multitrack/overdub environement of the late '60's.
