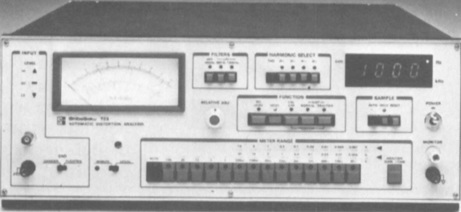

ASACA/SHIBASOKU 725 Automatic Distortion Analyzer

This versatile instrument works both as a distortion analyzer and as a high performance distortion meter. You can use it to measure distortion ratios as low as, 0001 % (-120 dB) and analyze the 2nd to 5th harmonic distortion.


The 725 extracts only the harmonic components from various measured signals, including noise. By obtaining fundamental frequency rejection characteristics of more than 120 dB, it measures the small distortion which noise usually covers.

Input level adjustment, selection of measuring range and tuning of measured frequency are all automatic.

The 725 connects to a general purpose interface bus (IEEE-488) and may be expanded into a fully automated instrumentation system.

  • Harmonic analysis circuit measures 2nd to 5th harmonic distortion, including THD.
  • Wide band distortion ratio measurement (5 Hz-110 kHz fundamental wave frequency).
  • Distortion meter has 5 Hz-500 kHz frequency range and 30 UV (-90 dB) full scale.
  • All functions are remote controlled.
