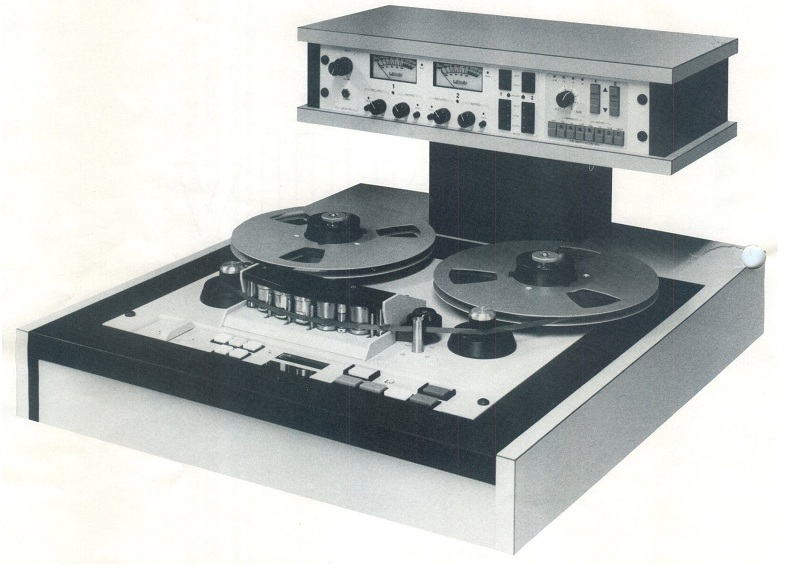

With the LJ-12 Recorder, L.J. Scully offers the broadcast and recording industries a new standard in analog recording. Now audio engineers have complete Digital Control of an analog tape recorder. At the heart of the LJ-12 are three advanced micro-processors, each communicating with the other, allowing unprecedented operational stability and flexibility.

LJ-12 Recorder features:

■ SIMPLICITY

■ Self diagnostics and plug-in circuitry for ease of service.

■ All connectors the finest available, including macliined-pin gold plated I.C. sockets and two-piece plug/receptacle type circuit card connectors.

■ Complete digital control of the transport functions including the use of lifetime hall-effect switching .

■ Solid-state, infra-red tape sensor using no moving parts or tape slots that interfere with tape threading.

■ Closed loop, dc servo capstan drive for ultimate speed accuracy Bi-directional servo capstan system allows reverse play capability.

■ The most accurate vari-speed system ever offered, with precise digital control of capstan speed from 3.00 to 36.00 IPS in .01 IPS increments, with L.E.D. display of IPS or percent of deviation.

■ Digital, real time position locator with LED display.

■ Home, replay and dump edit functions for ease of editing.

■ Shuttle control for easy cueing.

■ Digitally controlled constant tension reel motors for gentle tape handling.

■ Slow wind spooling mode for improved tape storage.

■ Long life, hot pressed glass bonded ferrite heads are standard.

■ Five position head stack allows spare head location in addition to the SMPTE time code head.

■ SMPTE compatibility using a center track between the two audio channels with a separate head to eliminate crosstalk problems.

■ Advanced, efficient switching power supplies insure cool operation without noisy fans.

■ Universal power supply mains input compatible with all world standards.

■ Versatile accessory connector allows access to all of the machine's vital internal signals including tallies, push-button inputs, and power supplies for easy interfacing to synchronizers and controllers.

■ Accepts both parallel and serial remotes and can be controlled using RS232 data (without the use of "black boxes").

■ Transformerless, high current, true differential output stage can supply +28 DBM and distortion-free unbalancing.

■ Quiet punch-in and out with bias delays precisely controlled by the audio control microprocessor.

■ Non-volatile memory stores all audio adjustment values and insures dependable storage without batteries.

■ Storage of separate values for every audio parameter, for all four tape speeds, for four tape types, with NAB or lEC standards.

■ Programmable fast-mute level and automatic high frequency correction prevents monitor speaker damage in lifter defeat mode.

■ Built-in monitor amplifier with headphone jack and terminals for console mounted speaker.

■ Quiet Operation

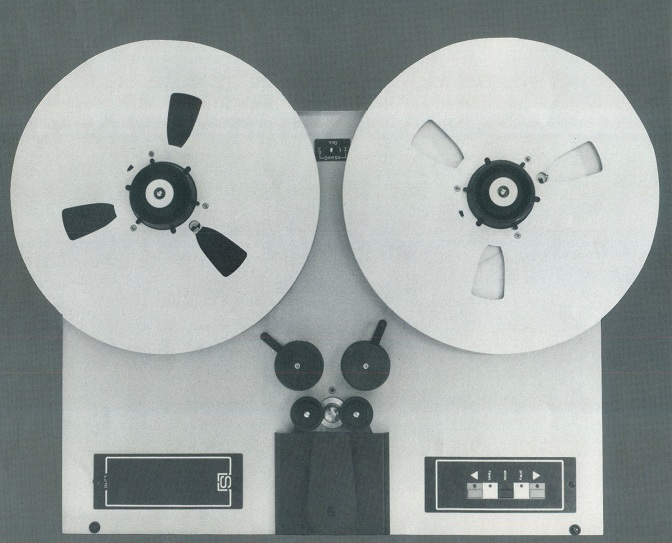

LJ-10 Reproducer features:

Engineered for performance and maintenance-free operation, the LJ-10 is built to exacting specifications by L.J. Scully craftsmen. This model offers unique advantages that have previously been unavailable to the broadcast industry. These features include:

CIosed loop drive offering substantially improved wow and flutter.

Linear actuated pressure rollers for a fast, smooth start.

Ability to gently handle 1 mil tape on 10" and 14" reels.

Built in foil sensing.

Solid state logic control circuitry.

Motion sensing for smooth control of fast and stop operations.

Fault detection for early signaling of a potential malfunction.

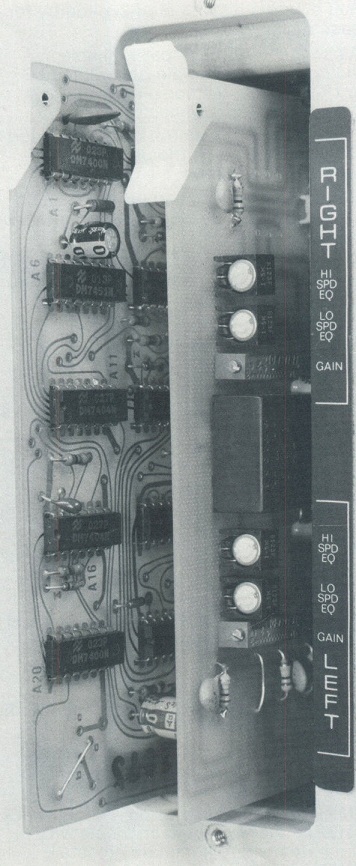

Front panel plug-in printed circuit construction for easy alignment and maintenance.

■Automatic equalization change with capstan speed selection.

Cue mode for easy loading and service.
