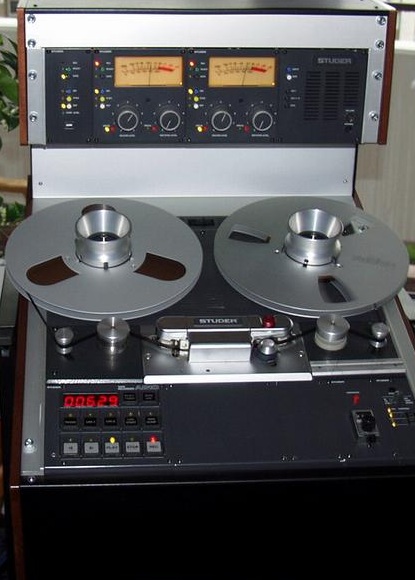

Studer A810 Tape Machine

Message Board - Studer A810 Tape Machine - General Discussion

Studer A810 Operating and Service Manual

By virtue of its compact and highly rigid construction, its inherent system flexibility, and the superior operating convenience achieved by the microprocessor control system, the STUDER A810 tape recorder is universally suited for applications in broadcarsting or television, for use in studios or on OB vans, in theaters, film studios, and scientific institutes.

Some of its outstanding features include:

Highly rigid, die-cast aluminium alloy chassises for tape transport, head-block assembly, pressure roller assembly, and other assemblies.

Manually manipulatable head shield above record and reproduce heads; can stay closed during spooling.

Capstan motor servo control with quartz-conrtrolled reference and capacitive sensing tacho system for highly accurate tape speeds.

Gentle tape handling is ensured by electronically controlled tape tension, servo-controlled AC spooling motors, and non-contacting tape tension sensors. Pulse-width-modulated spooling motor control minimizes power dissipation and requires no separate heat sinking.

Accurate electronic tape timer with real-time display; photoelectric scanning of guide roller rotation by opto switches.

Convenient editing; four spooling speeds; the high end of the reproduce frequency response is de-emphasized for speaker protection; tape lift during spooling can be defeated either by pressing a button or mechanically by shifting the pressure roller. Blocked tape tension sensors and decreased braking torque in STOP mode. A tape marker and built-in tape scissors are available as options.

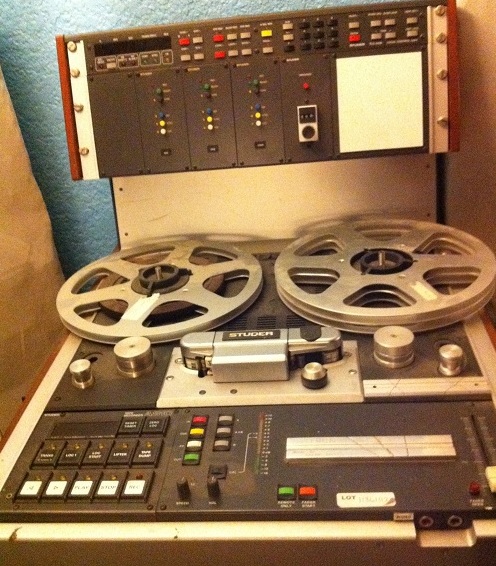

Monitor speaker built into tape transport cover (except console versions with penthouse where the monitor speaker is built into the panel)

The high system flexibility means that a suitable A810 version is available for any type of application:

Standard types in mono, 2-channel or stereo versions, with or without VU meter panel.

Operates in any position from horizontal to vertical, suited for 19" rack or console mounting. Available as a box-mounted model with removable lid or portable model with lateral handles or wooden side panels with handles.

LS versions; 3 Tape speeds (3.75 - 7.5 - 15 ips) selectable with front-panel rotary switch. Time code operation not possible at 3.75 ips.

HS versions; 4 Tape speeds (3.75 - 7.5 - 15 - 30 ips) selectable with front-panel rotary switch. Time code operation not possible at 3.75 ips.

Inputs and outputs balanced and floating, available with or without input/output transformers.

Switch for NAB or CCIR equalization (7.5 and 15 ips).

Tape bias switch for two tape formulations with different calibration data.

Sync facility, zerolocator, and 4-address transfer locator (autolocator) included as standard features.

Output selector buttons: INP (input), REP (reproduce) and SYNC.

VU-meter panel with SAFE/READY switch, record and reproduce level controls, buttons for bypassing the level controls (calibrated, with Line level). Internally switchable level meter; VII or PPM indication.

Selectable line voltage; 100, 120, UO, 200, 220, 240 VAC ±10%, 50...60 Hz.

Terminals for connecting fader start, parallel remote control and varispeed control.

The following features are available as options:

For synchronizing: time code system for 2-channel models; code channel as third track between the stereo audio channels.

Mono/stereo switch for stereo and 2-channel recorder.

Test generator (60, 125 Hz, 1, 10, 16 kHz).

Remote controller to serial interface; for storing (e.g. on tape) audio parameters for quick audio setup or for operation in conjunction with a terminal (RS 232 interface).

Maxinum operating convenience due to microprocessor control:

The Last operating state of the recorder is preserved when power is switched off: tape counter. Locator addresses, audio parameters, speed, mono/- stereo or tape A/B and NAB/CCIR.

If a channel controller exists, the audio signal is automatically switched to REPRO and SAVE when power is switched on again.

Drop-in activated by pressing only the REC button in reproduce mode or by pressing PLAY and REC (depending on internal programming).

Drop-out from record mode by pressing the PLAY key.

Reduced spooling speed: the full spooling speed (approx. 10 m/s) can be swtched down to 7, 4 or 1 m/s.

Zerolocator: automatic search of tape address (timer reading) 00:00.

Transferlocator LOC 1 ... LOC 4: for storing and automatic searching 4 different tape addresses. Stored addresses can be displayed without executing the actual search command.

Soft keys: the following internally programmable functions can be assigned to the keys LOC 2 ... LOC 4: LOC START (search Last PLAY address) LIFTER (defeats tape Lift during spooling) FADER (Local command keys disabled, only fader start possible) TAPE DUMP (dump edit mode, take-up motor is switched off) REM CONTR (local command keys disabled, operation only with remote control) CODE READY (enables recording on time code channel) These keys feature special recesses for attaching self-adhesive function labels.

Audio setup via microprocessor. The following audio parameters can be programmed with the keys accessible from the front below the operator panel (NAB and CCIR equalization each for two types of tape): Reproduction / Sync: LEVEL, TREBLE, BASS, EQUALIZATION Recording: LEVEL, TREBLE, BIAS, EQUALIZATION Resolution 256 steps each, hexadecimal format on tape timer display. The audio parameters remain stored even after the recorder has been switched off. They can also be saved by copying them through the serial remote port to an external storage medium from where they can subsequently be reloaded; this means that automatic and reproducible audio set-up of the A810 is pos sible.

Internal confidence test system with error diagnostics for the main functions:

Automatic check for correct functioning when the recorder is switched on; a subset of the test is periodically repeated.

Foundational text courtesy of Studer.
