Audio Fax console built with Langevin EQ and preamps

by Don Bell
(Lanesboro,MN 55949)

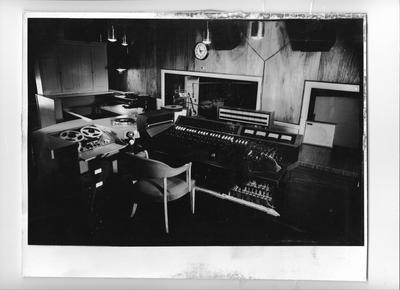

Audio Fax 20 input all tube console

Audio Fax 20 input all tube console

This console was originally built by Audio Fax for National Recording's Bryant Park studios in 1964. When it was taken out of service it was purchased and rebuilt for Straight Time Productions in Pittsburgh, PA.


The console had 44 Langevin 5116B preamps and 20 Langevin passive EQs.

The original faders were replaced with Gotham faders. The mix buss's were reconfigured for 20 in and 16 out with a 16 x 2 monitor section.
Nice sounding board.

Don Bell
